Method overview:

If you want a full method for Brazed lugs or fillet brazing try Tim Paterek manual form his site:  http://www.timpaterek.com/paterek.pdf

1.    Drawing: Always work from a scale or full size drawing. This is easy these days as there are so many programs out there. I use “Rattlecad“ It’s free easy and accurate. I then get it printed at my local printers or plot giant . You can hand draw as well if you have the time. Do not try and just jot a few numbers down and measure off a old bike. There are many things you need to measure and work out this really will save you time and make sure you make less mistakes.Frame_full_size_drawing

2.    Materials and tools: I will try and list some of the tools I am using in the gear section. As for materials there are loads of places to buy. I uses Ceeway in the and some local agents for 4310 or t45 tubing. You can design then choose your materials which is easier and they tube seller can help with selection or you can design around specific tubes. The advantage of brazing is that your can join dissimilar metals so 531 with 4310 and Nivachrome is no problem and you can use the same brazing rods. Or you can TIG weld for dissimilar metals with a a312 rod or Weldmolt 880T.

3.    Measuring: You will need to layout the tube set on the drawing and start measuring up. Look at inside fo the tubes to see where the butts run to.  A drawing is really useful as you can notch and mitre the first end of the tube and then lay it down to measure where to cut next. If you have any doubts always cut a mm or two too long so that you can file to the exact length.

Frame_full_size_drawing

4.    Cutting: I like to notch the tube first with this tool, then I will hand file to the exact fit. The mitre must be an almost exact match for the tube. You should see no daylight between the joint. You need less than a paper thickness of gap to achieve a strong joint. Not this is not welding where you can add filler material to the parent material to fill a  gap. The tubes that the load and the braze keep them there (not quite as SIF 101 has 460MN/MM2n of UTS).

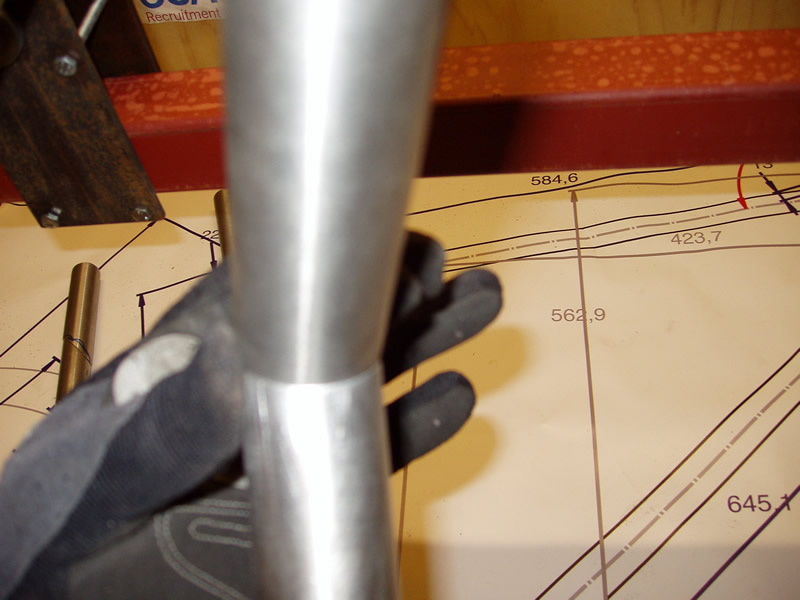

mitre joint

5.    Brazing: There are two main types Capillary brazing which is used for lugged joints and lugless frames with out fillets such as late 80’s Peugeots and MBK’s. Then there is Fillet brazing (or Braze welding). Fillet brazing in industry is normally just a fillet laid down on the outside of a joint just as you would weld. For bike frames you kid of use both. You make a capillary braze first called wetting or tinning then you build a fillet over that. Note that you will get distortion caused by the fillet. As is heats up the whole joint expands, you add you filler that hot and when its contracts it pulls the joint angle tighter. So basically the area you are building up the angle will become less (i.e more acute). That’s why you will need to check the angle throughout the process.

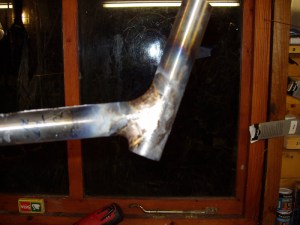

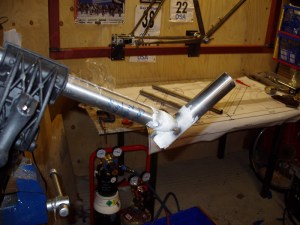

tackready bigfilletjoint1

6.    Alignment: after you have done all your joints you will have to check the alignment in all planes. You can use a jig for this or a flat (ground) surface. You will need to check its all square and if its not you can tweak it a little with some “cold setting” gentle levering to pull it straight when it is cool. If your frame is 2mm+ out forget it this is for small tweaks.

filletangle check.jpg.opt373x279o0,0s373x279check before tacking2

7.    Finishing: you will need to clean all the flux off and file all the fillets until they are smooth. Some people sand blast for stress (I am not convinced but it is easier and quicker) but basically you will need to finish the frame off with sand paper and some manual effort.

8.    Painting: er that’s kind of speaks for it’s self. A compressor and a High volume low Pressure HVLP spray gun should see you right.
More details and pics to follow.
